1. Material Basics and Crystal Chemistry
1.1 Make-up and Polymorphic Framework

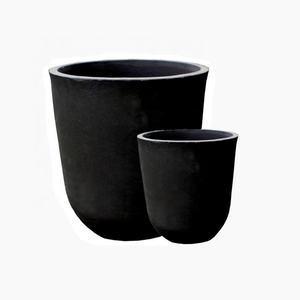

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its phenomenal hardness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks varying in stacking series– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most highly appropriate.
The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) result in a high melting point (~ 2700 ° C), low thermal growth (~ 4.0 Ă 10 â»â¶/ K), and exceptional resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC lacks a native lustrous phase, adding to its security in oxidizing and harsh ambiences up to 1600 ° C.
Its large bandgap (2.3– 3.3 eV, relying on polytype) also endows it with semiconductor residential or commercial properties, enabling dual usage in architectural and electronic applications.
1.2 Sintering Difficulties and Densification Methods
Pure SiC is very hard to compress as a result of its covalent bonding and low self-diffusion coefficients, demanding making use of sintering help or innovative processing techniques.
Reaction-bonded SiC (RB-SiC) is generated by penetrating permeable carbon preforms with molten silicon, developing SiC sitting; this technique returns near-net-shape elements with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) makes use of boron and carbon ingredients to promote densification at ~ 2000– 2200 ° C under inert ambience, attaining > 99% theoretical thickness and premium mechanical homes.
Liquid-phase sintered SiC (LPS-SiC) utilizes oxide ingredients such as Al Two O TWO– Y TWO O â, developing a transient liquid that enhances diffusion but might reduce high-temperature toughness because of grain-boundary stages.
Hot pushing and spark plasma sintering (SPS) offer fast, pressure-assisted densification with great microstructures, perfect for high-performance parts needing very little grain growth.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Stamina, Firmness, and Use Resistance
Silicon carbide ceramics show Vickers solidity values of 25– 30 Grade point average, 2nd only to diamond and cubic boron nitride amongst design materials.
Their flexural strength usually ranges from 300 to 600 MPa, with crack toughness (K_IC) of 3– 5 MPa · m ONE/ ÂČ– modest for porcelains but improved via microstructural design such as whisker or fiber support.
The mix of high firmness and elastic modulus (~ 410 Grade point average) makes SiC extremely resistant to rough and abrasive wear, surpassing tungsten carbide and hardened steel in slurry and particle-laden atmospheres.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC parts show life span several times longer than traditional options.
Its low density (~ 3.1 g/cm Âł) more adds to wear resistance by decreasing inertial forces in high-speed rotating components.
2.2 Thermal Conductivity and Security
One of SiC’s most distinguishing functions is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline forms, and up to 490 W/(m · K) for single-crystal 4H-SiC– surpassing most steels other than copper and aluminum.
This building allows reliable heat dissipation in high-power digital substratums, brake discs, and warmth exchanger parts.
Paired with reduced thermal development, SiC displays impressive thermal shock resistance, measured by the R-parameter (Ï(1– Îœ)k/ αE), where high worths suggest strength to rapid temperature changes.
For example, SiC crucibles can be heated from space temperature to 1400 ° C in minutes without breaking, a feat unattainable for alumina or zirconia in similar problems.
Furthermore, SiC keeps strength approximately 1400 ° C in inert atmospheres, making it excellent for furnace components, kiln furnishings, and aerospace components revealed to extreme thermal cycles.
3. Chemical Inertness and Deterioration Resistance
3.1 Behavior in Oxidizing and Minimizing Atmospheres
At temperatures below 800 ° C, SiC is extremely secure in both oxidizing and reducing atmospheres.
Over 800 ° C in air, a safety silica (SiO â) layer forms on the surface area through oxidation (SiC + 3/2 O TWO â SiO TWO + CARBON MONOXIDE), which passivates the product and slows additional deterioration.
Nonetheless, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)â, leading to accelerated economic downturn– a critical factor to consider in turbine and burning applications.
In reducing environments or inert gases, SiC continues to be stable as much as its decay temperature (~ 2700 ° C), with no stage modifications or strength loss.
This stability makes it ideal for liquified steel handling, such as aluminum or zinc crucibles, where it resists wetting and chemical strike far better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is essentially inert to all acids except hydrofluoric acid (HF) and strong oxidizing acid combinations (e.g., HF– HNO THREE).
It reveals outstanding resistance to alkalis up to 800 ° C, though extended exposure to thaw NaOH or KOH can create surface etching via formation of soluble silicates.
In liquified salt atmospheres– such as those in concentrated solar power (CSP) or nuclear reactors– SiC demonstrates remarkable rust resistance contrasted to nickel-based superalloys.
This chemical robustness underpins its usage in chemical process tools, consisting of valves, liners, and warm exchanger tubes handling hostile media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Emerging Frontiers
4.1 Established Utilizes in Energy, Defense, and Manufacturing
Silicon carbide porcelains are essential to numerous high-value industrial systems.
In the power market, they serve as wear-resistant liners in coal gasifiers, components in nuclear gas cladding (SiC/SiC composites), and substratums for high-temperature strong oxide gas cells (SOFCs).
Defense applications consist of ballistic armor plates, where SiC’s high hardness-to-density proportion offers remarkable defense against high-velocity projectiles contrasted to alumina or boron carbide at reduced price.
In manufacturing, SiC is used for precision bearings, semiconductor wafer managing components, and abrasive blowing up nozzles because of its dimensional stability and purity.
Its usage in electrical car (EV) inverters as a semiconductor substratum is rapidly growing, driven by performance gains from wide-bandgap electronic devices.
4.2 Next-Generation Advancements and Sustainability
Recurring research concentrates on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which show pseudo-ductile actions, boosted sturdiness, and retained toughness above 1200 ° C– excellent for jet engines and hypersonic car leading edges.
Additive manufacturing of SiC by means of binder jetting or stereolithography is advancing, enabling complicated geometries previously unattainable via standard developing methods.
From a sustainability viewpoint, SiC’s longevity lowers replacement frequency and lifecycle emissions in commercial systems.
Recycling of SiC scrap from wafer cutting or grinding is being developed through thermal and chemical healing procedures to reclaim high-purity SiC powder.
As markets press towards higher efficiency, electrification, and extreme-environment procedure, silicon carbide-based ceramics will certainly continue to be at the center of advanced materials engineering, linking the gap between structural resilience and functional adaptability.
